20FT With A Cooling Tower Built-in
JZX-20-560 Immersion Liquid Cooling Container
Specifications： 560KW I 112 Rack space for Antminer S19
Shipping Date: Delivery within 45 days after payment
Payment Method： USD | USDT | USDC
With miners completely immersed in cooling liquid, noise is extremely low. Liquid cooling greatly decreases noise in comparison with air cooling.
Some miners can get a 40%-60% overclocking.
|Name||560KW 20ft immersion liquid cooling container (with a cooling tower built in)|
|Inner size of cooling pool||253*76*51.6cm|
|Design parameters||Take S19 series as an example, 112 sets at most can be held in terms of the size and power capacity.|
|Major switch capacity||1250 A|
|Input voltage||380V~415V AC 50/60HZ|
|Working power (excluding servers)||38KW|
|Max operating power||598KW|
|Oil amount||4200L (without miners running)|
|Installation cables at least should be|
|415V||3 copper cables (each including 4*185mm²+1*95mm²), 4 aluminum cables (each including 4*185mm²+1*95mm²)|
|380V||3 copper cables (each including 4*185mm²+1*95mm²), 4 aluminum cables (each including 4*185mm²+1*95mm²)|

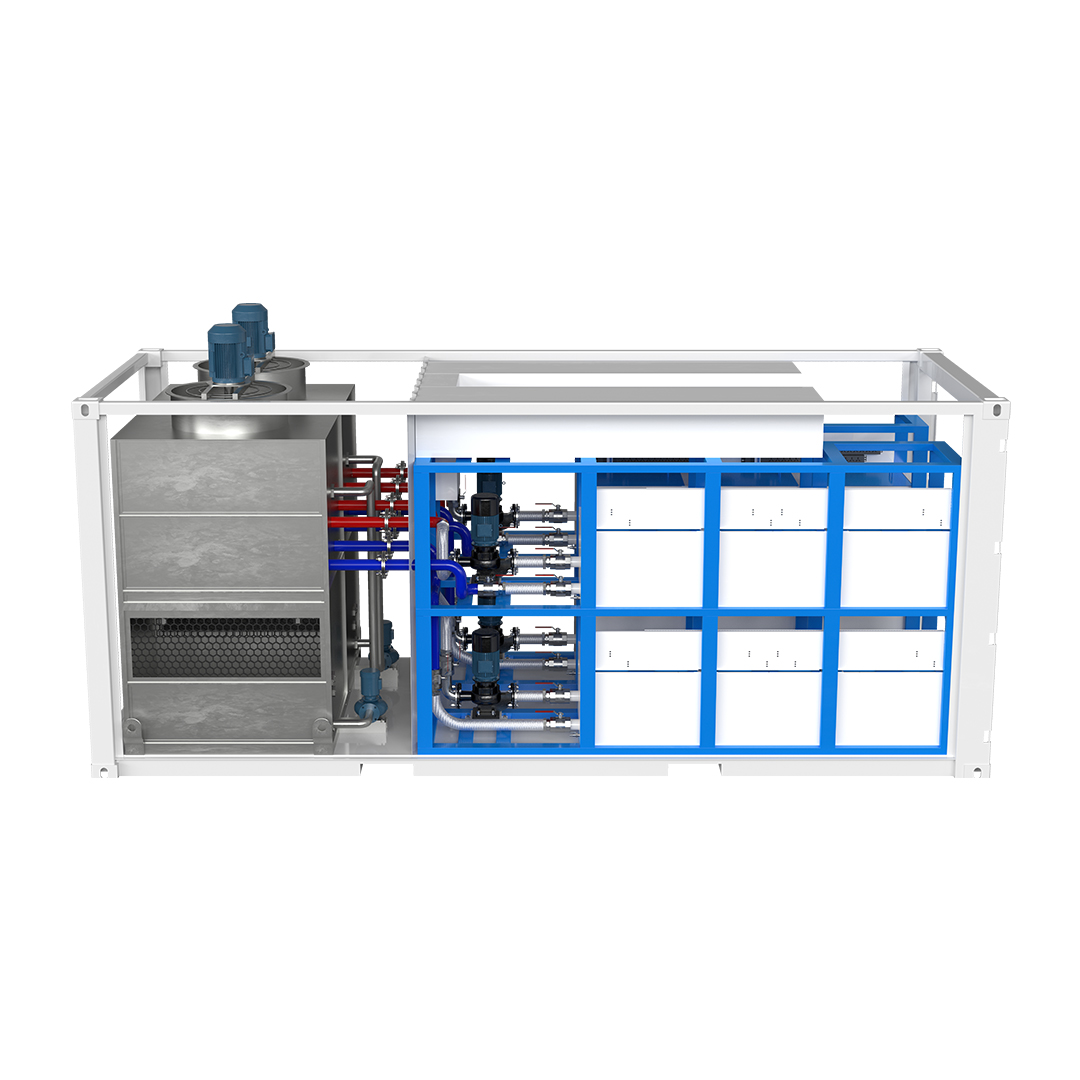

- Easy installation Modular design and assembled deployment highly shorten the circle of implementation, increasing installation efficiency. Also, both sea freight and land transportation are easy.
- Waste heat recycling 90% heat energy from miners can be recycled in an efficient manner with the help of waste heat recovery technology, like supplying heat for your houses or swimming pool, or hot water supply, or making profits by heat supply, etc.

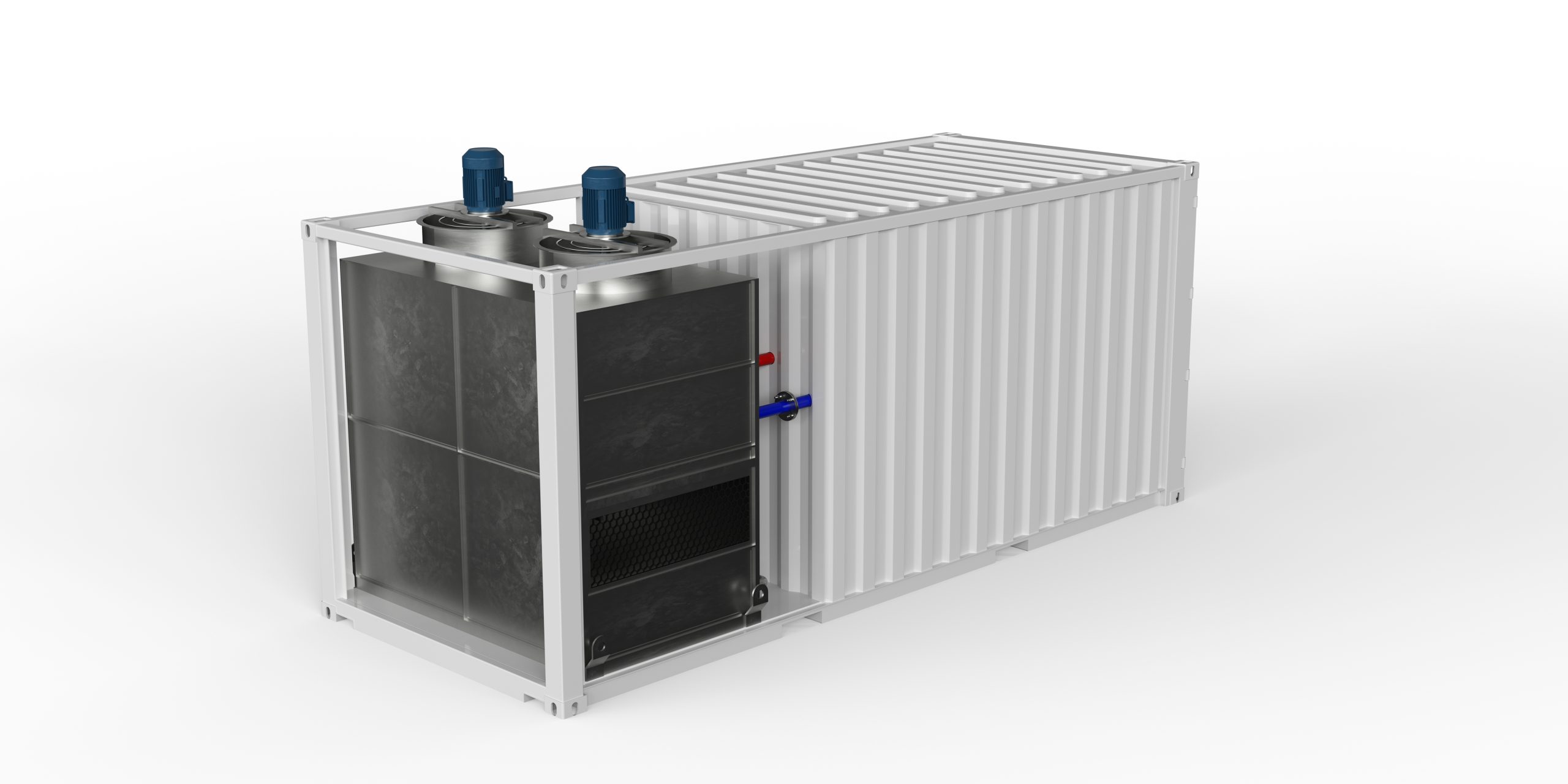

- Safe and high-efficient heat exchange With a close cooling tower built in, 20ft container works effectively and reliably in heat dissipation and saves water. The high-quality circulation pump decreases failures, making sure the equipment operates in a good manner. No need of a heat exchanger means cooling fluid enters the cooling system directly to dissipate heat. Therefore, there is no heat exchange loss in the second-time heat exchange.

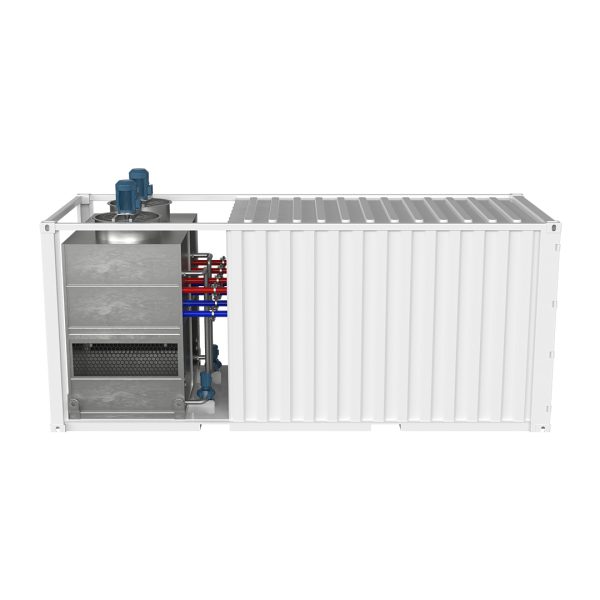

- Easy operation Module design makes cooling pools independent in control. There is a man-machine interaction interface on the container, so it’s easy for users to conduct remote monitoring by downloading an app in cellphone.
- Water saving The customized close counter-flow cooling tower can reduce the drifting ratio to be less than 0.01%, saving water. Compared with the FRP cooling tower, our stainless water tower is more durable and environmentally-friendly.
- Easy transportation and deployment The 20ft container is a 20ft GP with certificate of classification, making it easy, quick and convenient in transit, deployment and transfer. When some unexpected factors occur, such as hosting fee increasing, power fee going up, market downturn and policy changes, users are able to move it to other sites quickly.
- Stable overclocking Immersion design offers a much stabler overclocking environment for miners, boosting mining efficiency.
- Durability The 20ft container is made of stainless under joined and welded process, assuring stable operation, anti-corrosion and no oil leakage. The caps on the cooling pools stop cooling fluid from splashing.
- Overall shape and size of the product (length × width × height): 600*244*259cm, which can hold 112sets of Antminer S19

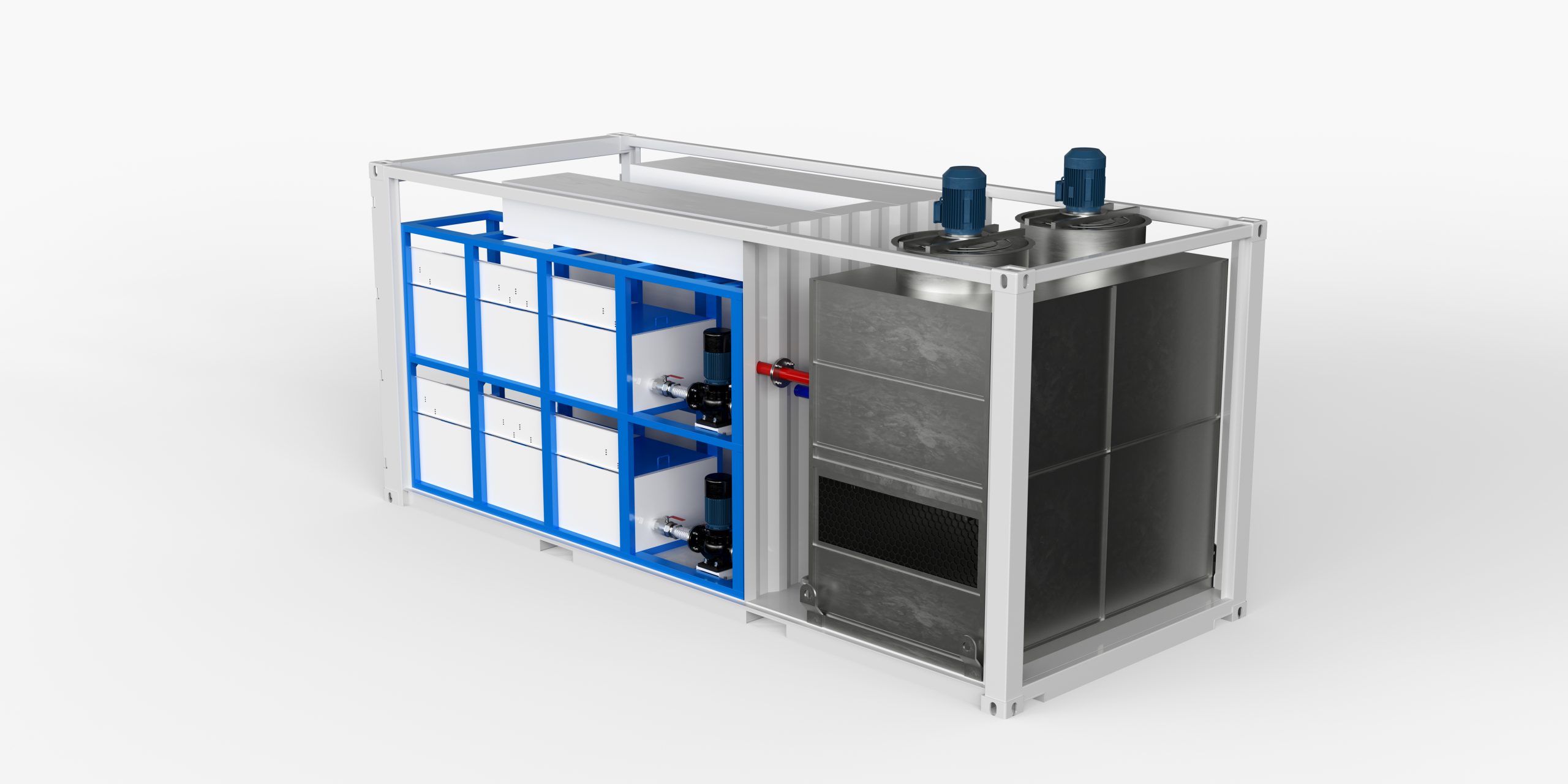

- 610KW immersion cooling container is composed of immersion cooling container body, shielded oil pump, brazing plate heat exchanger, The water cooling tower,etc.
- The device can connect to WIFI，Can be viewed remotely
- LCD makes the display clearer and more complete.
- Touch buttons offer users massive convenience in settings. More easily, customers can operate it through an APP on cellphone under the mode of WIFI.
- Simple installation and commission, high cost performance. It is equipped
- With an alarm of super-high temperature to monitor and control liquid levels and temperature on a real-time basis.
- With the protection devices of electricity leakage, the system provides reliable and efficient technical support for equipment protection and personal safety.
